The Ecochlor® Ballast Water Treatment System
is a two step process that includes filtration and ClO2 treatment.
Completely effective on all potential aquatic invasive species including zooplankton, phytoplankton, algae, microorganisms and even pathogens and viruses
Exceeds IMO D2 treatment standards and meets proposed USCG standards
Ideally suited for installation on all ships including the largest bulkers and tankers in the world
Explosion proof option for hazardous areas
Superior economic scale-up performance over competition

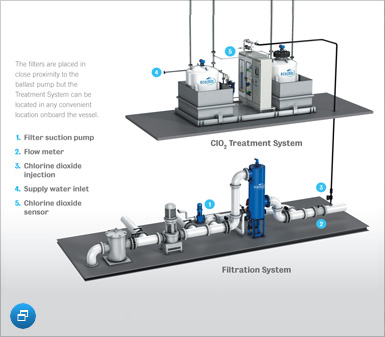

The system includes a filtration step followed by the injection of a dilute solution of chlorine dioxide. The filters are located in close proximity to the ballast water pumps but the chlorine dioxide generation module can be located in any convenient location on board the vessel.
A Complete System
In this short animation you can see how the Ecochlor Ballast Water System works.
» Animated System Overview
Ecochlor® System Specifications
| SERIES | MODEL | CAPACITY (m3/hr) |
TANK SIZE (m3) |
|
SUPPLY WATER (m3/hr)(b) |
POWER (kWh)(c) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | ES-400-1.0 | 400 | 1.0 | 0.4 | 10.5 | 1.3 | 5.4 | ||||
| 100 | ES-800-1.0 | 800 | 1.0 | 0.8 | 11.4 | 2.8 | 5.9 | ||||
| 150 | ES-1200-1.5 | 1,200 | 1.5 | 0.8 | 14.0 | 7.8 | 7.5 | ||||
| 150 | ES-2400-3.0 | 2,400 | 3.0 | 1.6 | 14.0 | 7.8 | 8.2 | ||||
| 200 | ES-3600-4.0 | 3,600 | 4.0 | 2.4 | 20.0 | 14.0 | 11.0 | ||||
| 200 | ES-4800-5.0 | 4,800 | 5.0 | 4.0 | 20.0 | 14.0 | 11.0 | ||||
| 250 | ES-7200-6.0 | 7,200 | 6.0 | 6.0 | 23.0 | 26.0 | 14.7 | ||||
| 250 | ES-9600-8.0 | 9,600 | 8.0 | 8.0 | 23.0 | 45.5 | 23.3 | ||||
Alternate capacity and chemical tank sizes are available for any size ship.
Design options for hazardous area installation also available.
a Installed in any convenient ship location. b During ballasting only. c Continuous filter cleaning operation.
-
US EPA FIFRA Registered
-
US Coast Guard STEP Approved
-
IMO Final Approved
-
Type Approved
BSH Germany -
